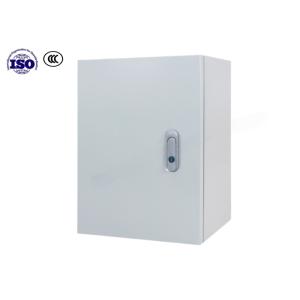

Building Automation System IO Control Cabinet Power Distribution Panel
Product Describe:
1. HVAC Control: DDC cabinets optimize air conditioning, heating, and ventilation by adjusting temperature, humidity, and airflow based on sensor data, reducing energy use in unoccupied areas.
2. Lighting Automation: Integrated with sensors and schedules, DDC systems dim or turn off lights in empty spaces and align with building routines (e.g., office lighting at 8 AM).
3. Water Management: They monitor flow, pressure, and tank levels, detect leaks, and optimize pump operations for efficient water use in restrooms, kitchens, and irrigation.
4. Elevator Efficiency: DDC systems adjust elevator dispatch during peak hours (e.g., morning commutes) and put idle units on standby to save energy.
5. Safety Integration: Linked to fire and security systems, DDC activates emergency protocols—lighting stairwells, shutting HVAC to block smoke, and unlocking exits.
6. Energy Analytics: They track power, water, and HVAC usage, generating reports to spot inefficiencies (e.g., wasted lighting) and guide energy-saving measures.
Design:
• Conventional Sizes
Small-sized: Common sizes include 400(H) × 300(W) × 150(D)mm, etc. They are suitable for small-scale equipment control or places with limited space, such as lighting control of small production lines.
• Medium-sized: These include 600(H) × 500(W) × 150(D)mm, 2200(H) × 800(W) × 800(D)mm, etc. They can meet the lighting control needs of small and medium-sized enterprise production lines and some automation systems, and can accommodate more modules and components.
• Large-sized: For example, 800(H) × 600(W) × 150(D)mm. They are suitable for large-scale places such as large production lines and chemical plants, and can install a large number of components to meet complex intelligent dimming control requirements.
• Custom Sizes: They can be customized according to factors such as actual installation space, the number of control devices, and the complexity of control circuits. For instance, if the installation space is narrow, a thinner or narrower cabinet can be customized; if a large number of devices and circuits need to be controlled, the width, depth, or height of the cabinet can be increased to accommodate more modules and cables, ensuring the normal operation of the equipment and facilitating maintenance.
IP Grade:
IP54 / IP55 / IP65 / IP66
Suggestion:
1. Function Matching
Match I/O ports to HVAC/lighting loads
Add modules for specialized sensors (CO₂, water leak)
2. Network Compatibilit
Support BACnet/Modbus for seamless integration
Use 5G for remote high-rise management
3. Protection
IP54 enclosures for damp areas (e.g., basements)
Surge protection for high-voltage urban zones
4. Scalability
Reserve expansion slots for future upgrades (e.g., EV charger control)
Adapt to building system expansions
