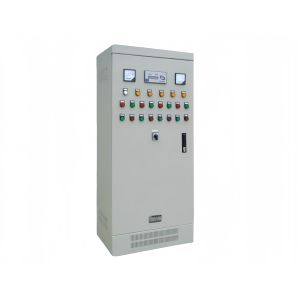

Switch Control Cabinet for Power Distribution and Equipment Operation Systems
Applications
-
-
A Switch Control Cabinet is an essential unit in electrical power and automation systems.It is used to control, distribute, and protect electrical circuits and equipment by means of switches, breakers, contactors, and protective relays.The cabinet serves as the central control hub for machines, motors, pumps, fans, and lighting systems, ensuring stable and safe operation in both industrial and commercial environments.
-
Application Scenarios
- Industrial Automation Systems
- Used to start, stop, and protect machinery, conveyors, and production lines.
- Common in factories, manufacturing plants, and assembly workshops.
- Building Electrical Distribution
- Controls and distributes power to HVAC units, lighting systems, elevators, and other building equipment.
- Suitable for office buildings, hospitals, schools, and shopping centers.
- Water Supply and Pump Control
- Manages pumps, motors, and valves in water treatment and wastewater systems.
- Provides overload protection and automatic/manual switching.
- Renewable Energy and Utility Stations
- Acts as a distribution and control interface in solar farms, wind stations, and substations.
- Infrastructure and Public Projects
- Used in transportation systems, airports, tunnels, and municipal facilities for equipment operation control and safety management.
Technical Specifications
| Specification Type | Height (H) | Width (W) | Depth (D) |
| Small | 600-800 mm | 500-600 mm | 250-300 mm |
| Medium | 760-1200 mm | 700-1000 mm | 300-500 mm |
| Large | 1600-2000 mm | 1000-1200 mm | 400-600 mm |
Customization Notes:
| Parameter | Specification / Details |
| 1. Rated Voltage | Commonly AC 220V / 380V / 415V, 50/60Hz. |
| 2. Control Mode | Manual, automatic, or PLC-based intelligent control. |
| 3. Circuit Quantity | Define number of controlled circuits or devices (e.g., 2–12). |
| 4. Switch Type | Air circuit breaker, molded case breaker (MCCB), isolator, or rotary switch. |
| 5. Enclosure Type | Wall-mounted (compact) or floor-standing (large). |
| 6. Protection Level | IP42–IP65 depending on environment (indoor/outdoor). |
| 7. Material | Cold-rolled steel, stainless steel, or aluminum alloy. |
